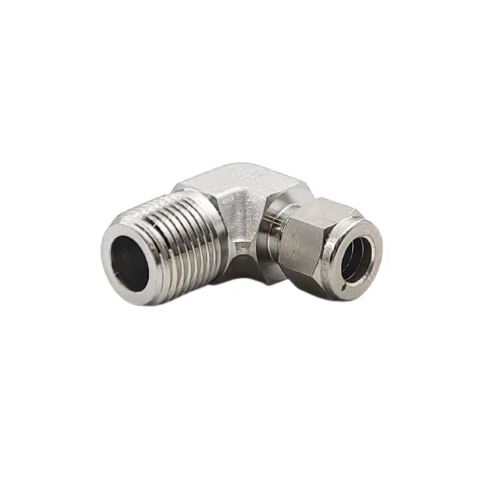

Ss 316 Threaded Fittings

Get a Price/Quote

Product Details:

Tolerance Within industry standard tolerances
Flexibility Rigid
Diameter Varies as per specification
Temperature Range Up to 425°C or 797°F
Coating Type None
Yield Strength 205 MPa
Tensile Strength 515 MPa
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Ss 316 Threaded Fittings Product Specifications

Color Metallic Silver
Material Stainless Steel
Surface Treatment Polished
Shape Varied (e.g. elbow tee coupling)
Connection Threaded
Sealing Type Threaded seal
Standard ASME B16.11 / ANSI / MSS-SP-83
Thickness Varies as per specification
Usage Industrial piping systems chemical and marine applications
Thread Type NPT / BSP
Connection Type Threaded Fittings
Material Grade SS 316
Flexibility Rigid
Tolerance Within industry standard tolerances
Application Pipeline connection industrial applications chemical processing
Length Varies as per specification
Warranty Manufacturer warranty available
Tensile Strength 515 MPa
Product Type Threaded Fittings
Yield Strength 205 MPa
Coating Type None
Temperature Range Up to 425°C or 797°F
Outer Diameter Varies as per specification
Rated Pressure High-pressure rated
Diameter Varies as per specification
Section Shape Circular

Product Description

The Ss 316 Threaded Fittings are high-quality stainless steel fittings designed for industrial piping systems, chemical, and marine applications. With a metallic silver color and polished surface treatment, these fittings are available in various diameters and lengths, meeting industry-standard tolerances. The fittings feature a threaded seal for secure connections, suitable for high-pressure and high-temperature environments up to 425C. These rigid fittings, rated with a tensile strength of 515 MPa and a yield strength of 205 MPa, ensure durability and reliability. Designed with ASME B16.11 / ANSI / MSS-SP-83 standards, these varied-shaped fittings provide a robust solution for pipeline connections and industrial applications, offering a manufacturer warranty.

Usage/Application	Chemical Handling Pipe
Material	SS
Size/Diameter	0.5 inch
Size	1/2" TO 20"
Color	GREY

FAQs of Ss 316 Threaded Fittings:

Q: What is the material grade of the Ss 316 Threaded Fittings?

A: The material grade of the fittings is SS 316, which is high-quality stainless steel.

Q: What diameter and length options are available for these fittings?

A: The fittings come in various diameters and lengths as per specifications, meeting industry standards.

Q: Can these fittings be used for high-pressure applications?

A: Yes, these fittings are high-pressure rated and suitable for industrial piping systems.

Q: What is the temperature range these fittings can withstand?

A: The fittings can handle temperatures up to 425C or 797F, making them suitable for different applications.

Q: Are these fittings suitable for chemical processing applications?

A: Yes, the Ss 316 Threaded Fittings are ideal for chemical handling pipes and various chemical processing applications.
