Carbon Steel Elbow

Get a Price/Quote

Product Details:

Connection Type Butt Weld
Thread Type None
Yield Strength 240 MPa
Temperature Range Up to 425°C
Flexibility Rigid
Sealing Type None
Diameter Varies
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Carbon Steel Elbow Product Specifications

Connection Type Butt Weld
Outer Diameter Varies
Thread Type None
Color Black
Warranty Varies
Material Grade ASTM A234 WPB
Temperature Range Up to 425°C
Yield Strength 240 MPa
Flexibility Rigid
Sealing Type None
Product Type Carbon Steel Elbow
Thickness Schedule 20 40 80 etc.
Shape Elbow
Application Pipeline Systems
Length Standard
Diameter Varies
Standard ANSI/ASME B16.9
Usage Fluid Transportation
Tolerance Standard Tolerance as per Specification
Connection Welded
Bend Radius Standard
Surface Treatment None / Black Finish
Rated Pressure Depends on Diameter and Thickness
Tensile Strength 415 MPa
Coating Type None
Section Shape Round
Material Carbon Steel

Product Description

The Carbon Steel Elbow is a crucial component in pipeline systems, manufactured from ASTM A234 WPB grade carbon steel with a black finish. This rigid elbow with a welded connection type comes in various diameters and lengths to suit different requirements. With a high tensile strength of 415 MPa and a yield strength of 240 MPa, this elbow is suitable for fluid transportation at temperatures up to 425C, meeting ANSI/ASME B16.9 standards for quality and reliability.

Nominal Size	1/2 inch
Bend Angle	90 Degree, 45 Degree, 180 Degree
Usage/Application	Industrial
Schedule	Sch20, Sch40, Sch80
Country of Origin	Made in India

FAQs of Carbon Steel Elbow:

Q: What is the material grade of the Carbon Steel Elbow?

A: The Carbon Steel Elbow is made from ASTM A234 WPB grade carbon steel.

Q: What is the application of this elbow?

A: This elbow is used in pipeline systems for fluid transportation in industrial settings.

Q: What is the surface treatment of the Carbon Steel Elbow?

A: The elbow comes with a black finish or no surface treatment.

Q: What is the maximum temperature range for this elbow?

A: The Carbon Steel Elbow can withstand temperatures up to 425C.

Q: What type of connection does this elbow have?

A: The Carbon Steel Elbow has a butt weld connection type.

Other Products in 'Carbon Steel and Mild Steel Pipe Fittings' category

Carbon Steel 5d Elbow Rated Pressure : Applicable to piping system standards Coating Type : None Tensile Strength : Depend on material grade Thickness : Customizable Diameter : Customizable Tolerance : Standard Pipe Tolerance Usage : Industrial Piping System Warranty : Varies by Manufacturer Yield Strength : Depend on material grade Temperature Range : Suitable for high temperatures Flexibility : Rigid Connection Type : Butt Weld Outer Diameter : Customizable Color : Black Length : Standard Material Grade : A234 WPB Sealing Type : None Material : Carbon Steel Section Shape : Other, Circular Shape : Elbow, Other Application : other, Pipe Connection Standard : ANSI ASME B16.9, Other Surface Treatment : Black Painting Connection : Welded, Other Product Type : Other, 5D Elbow Thread Type : None Bend Radius : 5D

Send Inquiry

Carbon Steel Socket Weld Coupling Rated Pressure : High Pressure Coating Type : None Tensile Strength : High Thickness : Standard Diameter : Variable Tolerance : Industrial Usage : Pipeline Connections Warranty : Depends on Manufacturer Yield Strength : High Temperature Range : High Temperature Range Flexibility : Rigid Connection Type : Welded Outer Diameter : Variable Color : Metallic Length : Standard Sealing Type : MetaltoMetal Material : Carbon Steel Section Shape : Other, Rounded Shape : Other, Cylindrical Application : other, Industrial Piping Solutions Standard : Other, ASME / ANSI Surface Treatment : Other, Machined Connection : Socket Weld, Other Product Type : Coupling Thread Type : None

Send Inquiry

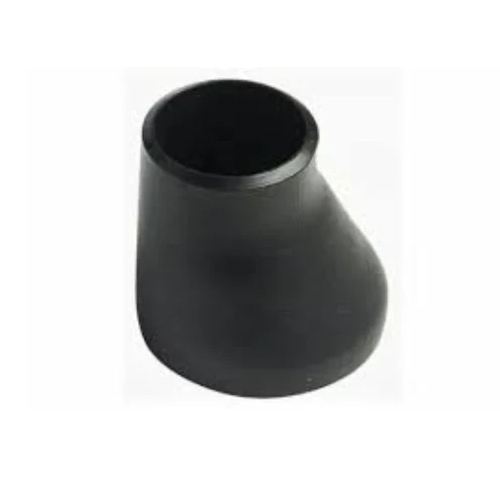

Carbon Steel Sa 106 Gr B-A333 Gr B Butt Weld Eccentric Reducer Rated Pressure : Standard pressure ratings Coating Type : Standard Tensile Strength : Complies with material specifications Thickness : Varies by specification Diameter : Varies by specification Tolerance : Standard tolerance as per ASME B16.9 Usage : Connect pipes of different diameters in pipeline systems. Warranty : Depends on supplier Yield Strength : Complies with material specifications Temperature Range : Suitable for hightemperature applications Flexibility : Rigid component Connection Type : Eccentric reducer connection Outer Diameter : Varies by specification Color : Black Length : Varies by specification Material Grade : SA 106 Gr B / A333 Gr B Sealing Type : Welded Material : Carbon Steel Section Shape : Cylindrical, Other Shape : Other, Eccentric Reducer Application : other, Pipeline and industrial usage Standard : Other, ASME B16.9 Surface Treatment : Other, Raw or anticorrosive coating Connection : Butt weld, Other Product Type : Other, Butt Weld Eccentric Reducer
